Electrical

Model

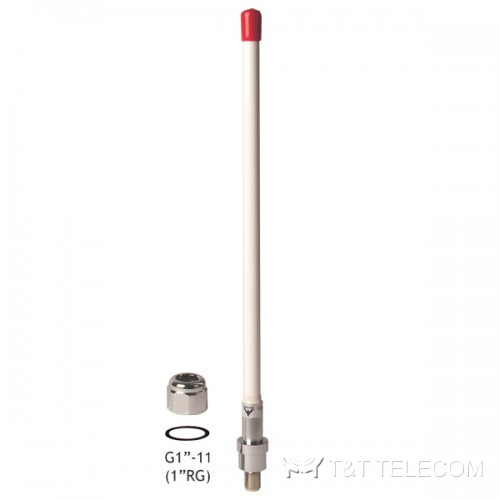

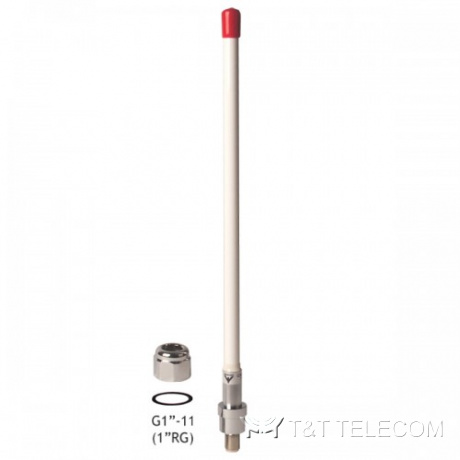

CXL 70-1/...

Frequency

CXL 70-1/l : 380 - 430 MHz

CXL 70-1/h : 420 - 470 MHz

CXL 70-1/hs : 460 - 510 MHz

Antenna Type

Coaxial dipole, broad-banded

Max. Input Power

150 W

Polarisation

Vertical

Pattern Type

Omnidirectional

3 dB Beamwidth, E-Plane

80 °

3 dB Beamwidth, H-Plane

Omnidirectional

Impedance

50 Ω

Gain

0 dBd (2.0 dBi)

VSWR

< 1.5:1

Bandwidth

50 MHz

HCM Code(s)

HCM000ND00, 040DE00

Mechanical

Connection(s)

N(f)

Materials

Shroud : Polyurethane-coated glass fibre

Mounting bracket : Chromed brass

Colour

White (RAL 9003)

Wind Area

0.0093 sq. m / 0.10 sq. ft

Wind Load

12 N (160 km/h / 99.42 mph)

Dia. At Top End

12 mm / 0.47 in.

Dia. At Bottom End

16 mm / 0.63 in.

Height

600 mm (± 1 cm) / 23.62 in.

Weight

Approx. 0.35 kg / 0.77 lb.

Mounting

On 1" RG (G1" - 11) threaded water pipe or on optional mounting brackets (see accessories)

Environmental

Operating Temperature Range

-30 °C to +70 °C

Survival Wind Speed

200 km/h
