TQJ-0660XTLA-M Антенна
|
Характеристики
|
||
Описание

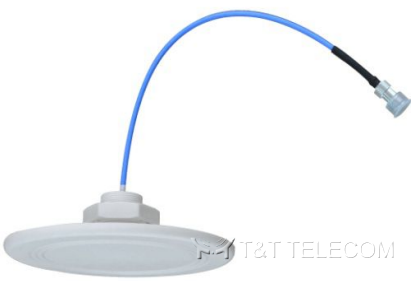

TQJ-0660XTLA-M
Omnidirectional ceiling antennaElectrical specifications
|
Frequency range (MHz)
| 617-698 | 698-960 | 1695-2700 | 3300-4200 | 4800-6000 |
| Polarization | Linear，Horizontal | ||||
| Typical Gain (dBi) | 4 | 4 | 5 | 6 | 7 |
| Horizontal beam width (°) | 360，omnidirectional | ||||
| Typical Vertical beam width (°) | 70 | 68 | 50 | 60 | 30 |
| Impedance (Ω) | 50 | ||||
| VSWR | ≤2.0 | ≤1.5 | |||
| Intermodulation IM3 (2×43dBm carrier) | / | ≤-153 dBc | ≤-153 dBc | / | / |
| Maximum power (W) | 50 | ||||
Mechanical specifications
| Connector | 4.3-10 Female or N Female |
| Exposed cable size (cm) | 30 |
| Connector position | Bottom |
| Antenna size (mm) | Φ250*8 |
| Packing size (mm) | 265*265*90 |
| Weight (kg) | 0.4 |
| Radome material | ABS |
| Radome color | White（RAL 9003) |
| Operating humidity (%) | 5～95 |
| Operating temperature (℃) | -40～60 |
| Application | Indoor |
| Mounting | Fixed with nut |
