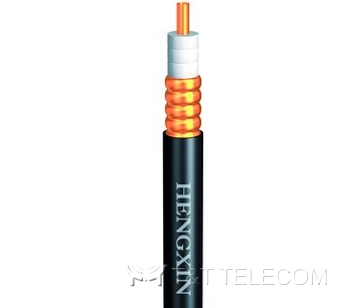

ONSTRUCTION MATERIALS

Inner conductor

Smooth Copper Tube

Dielectric

Physical Foam Polyethylene

Outer conductor

Corrugated Copper Tube

Jacket

Low Smoke Halogen-free Fire-retardant

PHYSICAL DIMENSIONS

Inner Conductor Diameter

9.45 mm

Dielectric Diameter

22.80 mm

Outer Conductor Diameter

25.40 mm

Diameter Over Jacket

27.80 mm

MECHANICAL SPECIFICATIONS

Minimum Bending Radius

Single Bending

90 mm

Repeated Bending

250 mm

Minimum Number of Bends

15

Tensile Strength

1470 N(325 lb)

ELECTRICAL PROPERTIES

Capacitance

75.0 pF/m(22.9 pF/ft)

Impedance

50±1 Ω

Velocity

89%

RF Peak Voltage

3.00 kV

Peak power rating

91 kW

Cut-off frequency

5.20 GHz

Shielding Effectiveness >10MHz

>120 dB

Insulation Resistance

5000 MΩ•km

VSWR

800~1000MHz

≤1.10

1700~2200MHz

≤1.13

2200~2700MHz

≤1.15

ENVIRONMENTAL SPECIFICATION

Storage Temperature

-55 ℃ ~ +85 ℃

Installation Temperature

-40 ℃ ~ +60 ℃

Operating Temperature

-55 ℃ ~ +85 ℃
